How do the parser and scanner communicate? Explain with the block diagram communication between them
- The lexical analyzer is the first phase of compiler. Its main task is to read the input characters and produce as output a sequence of tokens that the parser uses for syntax analysis.

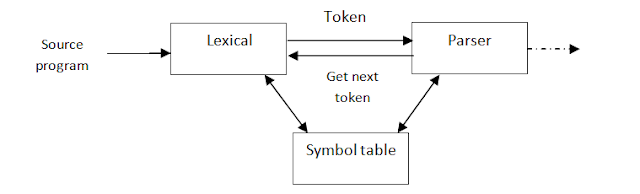

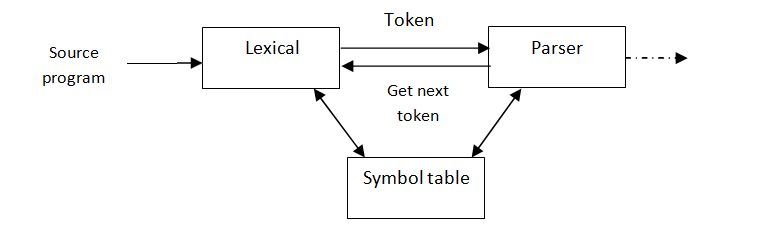

- This interaction is given in figure 2.1,
- It is implemented by making lexical analyzer be a subroutine.
- Upon receiving a “get next token” command from parser, the lexical analyzer reads the input character until it can identify the next token.
- It may also perform secondary task at user interface.
- One such task is stripping out from the source program comments and white space in the form of blanks, tabs, and newline characters.
- Some lexical analyzer are divided into cascade of two phases, the first called scanning and second is “lexical analysis”.
- The scanner is responsible for doing simple task while lexical analysis does the more complex task.
Issues in Lexical Analysis:
There are several reasons for separating the analysis phase of compiling into lexical analysis and parsing:
- Simpler design is perhaps the most important consideration. The separation of lexical analysis often allows us to simplify one or other of these phases.
- Compiler efficiency is improved.
- Compiler portability is enhanced.
